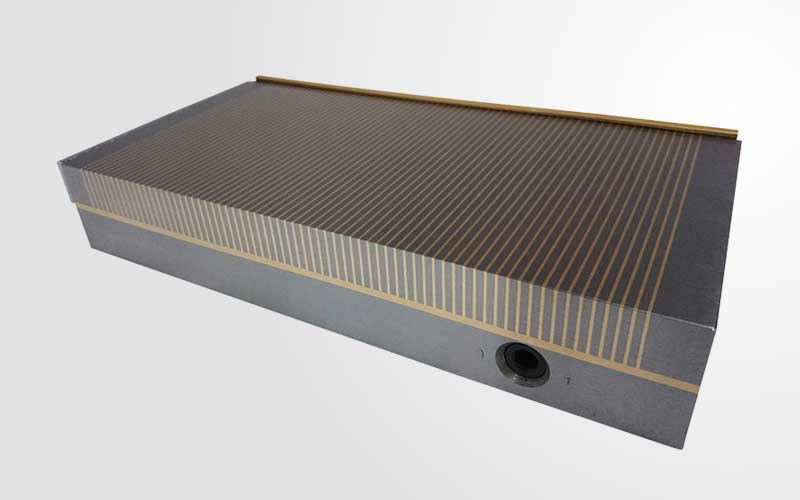

Standard pole rectangular permanent magnetic chuck
PMSF
APPLICATION
For grinding and EDM application
Best for medium size workpiece
FEATURES
Strong magnetic force and less remaining magnetism
With coolant and water proof structure
Can be switched ON or OFF by hand lever
With parallelism, flatness and squareness 0.005mm/100mm
Nominal holding force: 90 N/cm2(JIS)
Magnetic field depth: 8mm
Pole plate wearing limit: 5mm
Hot keywords:High accurancy, High efficiency, High quality
PRODUCT SELECTION TABLE
MODEL
DIMENSIONS
LENGTH(MM)
WIDTH(MM)
HIGH(MM)
WEIGHT(KG)
POLEPITCH(MM)
PMS1018F
104
180
49
6.5
1+3
PMS1325F
130
250
49
11.5
1+3
PMS1530F
150
300
51
15.5
1+3
PMS2040F
200
400
51
32
1+3
PMS2060F
200
600
51
52
1+3
PMS3050F
300
500
56
60
1+3
PMS3060F
300
600
56
72
1+3
