Round electro permanent magnetic chuck with Radial poles

Electro permanent magnetic chuck

Language :  English
Round electro permanent magnetic chuck with Radial poles
EPR

APPLICATION

For lathe



FEATURES

Max diameter can up to 3800mm

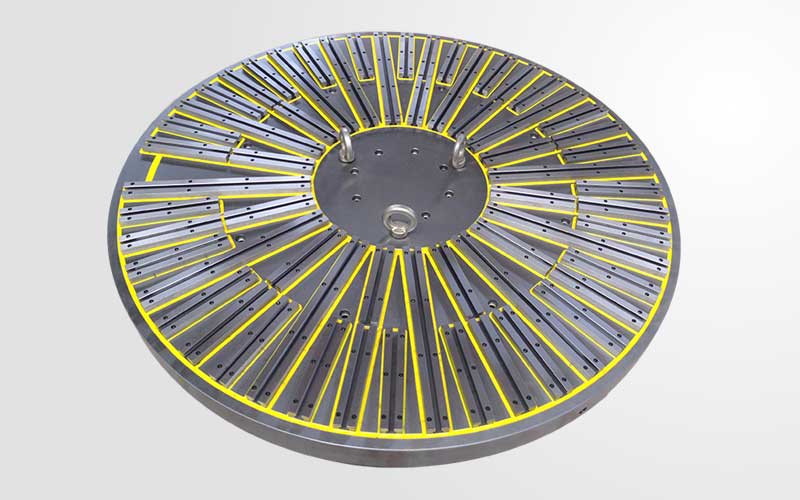

Round electro permanent magnetic chuck with Radial poles
Round electro permanent magnetic chuck with Radial poles
Hot keywords:electro permanent magnetic chuck
PRODUCT SELECTION TABLE
MODEL
DIMENSION(MM)
A
B
C
D
E
F
G
H
I
P
WEIGHT(KG)
EPR500
500
68
280
4
320
M16（6X）
16
100
15

160
EPR600
600
68
350
4
390
M16（6X）
18
100
15

230
EPR800
800
68
500
4
560
M16（6X）
18
180
18

430
EPR900
900
68
500
4
560
M16（6X）
18
180
18

560
EPR1000
1000
68
500
4
620
M16（6X）
18
200
18

720
EPQ-EPR.pdf
