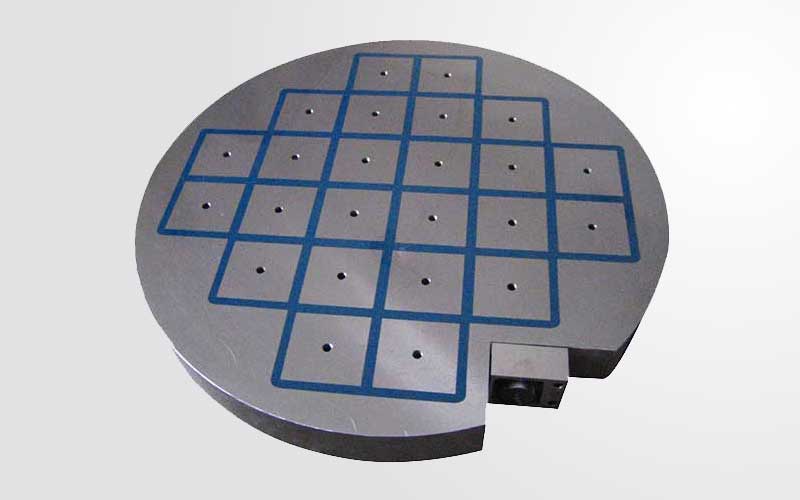

Round electro permanent magnetic chuck with square poles

Electro permanent magnetic chuck

Language :  English
Round electro permanent magnetic chuck with square poles
EPQ

APPLICATION

For lathe

Best suited for workpieces at least 400x400mm and 18mm thick, also with normal operating air gaps



FEATURES

Pole size：75 ×75mm

750 kgf for each pole

High poles density

Magnetic field depth：18mm

Round electro permanent magnetic chuck with square poles
Round electro permanent magnetic chuck with square poles
Hot keywords:5 sided machining
PRODUCT SELECTION TABLE
EPQ-EPR.pdf
