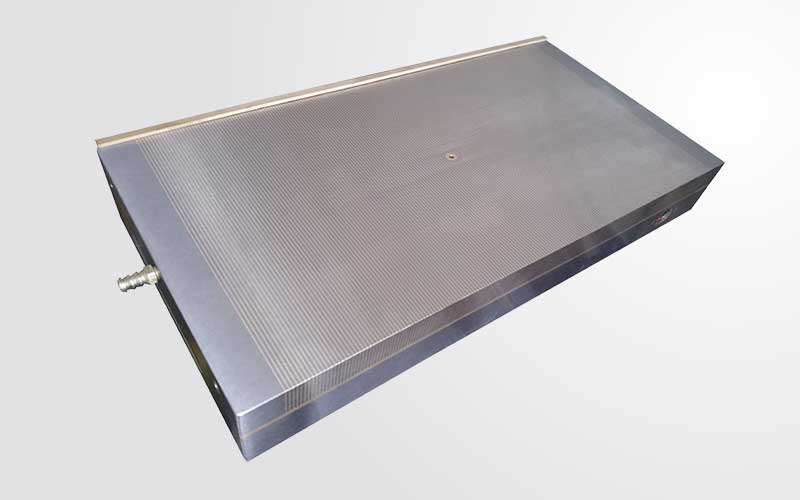

Rectangular permanent magnetic chuck for EDM
PME
APPLICATION
For grinding and EDM application
Best for medium size workpiece
FEATURES
90N/cm2 holding force
Intgral flushing hole system in top plate for suction or pressure flushing of erosion
Fine pole with iter-pole design minimizes magnetic flux height to ensure free flushing of erosion material
Fully saturating magnetic design with positive-off ensures consistent performance across entire chuck face and full workpiece release
Fully submersible for use in EDM baths
Hot keywords:High accurancy, High efficiency, High quality
PRODUCT SELECTION TABLE
MODEL
DIMENSIONS
LENGTH(MM)
WIDTH(MM)
HIGH(MM)
WEIGHT(KG)
POLEPITCH(MM)
PMS1018M
104
180
49
6.5
0.5+1.5
PMS1325M
130
250
49
11.5
0.5+1.5
PMS1530M
150
300
51
15.5
0.5+1.5
PMS2040M
200
400
51
32
0.5+1.5
PMS2060M
200
600
51
52
0.5+1.5
PMS3050M
300
500
56
60
0.5+1.5
PMS3060M
300
600
56
72
0.5+1.5
