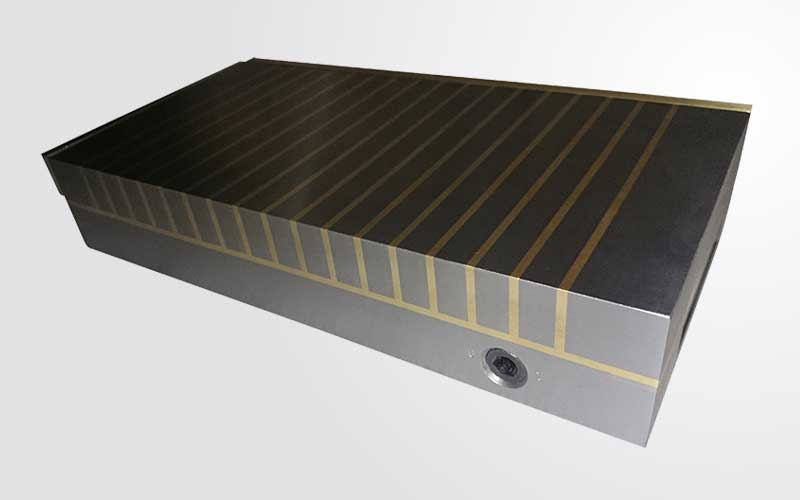

Powerful rectangular permanent magnetic chuck
PMM
APPLICATION
For heavy machining, such as milling and planning
Can be used for small, medium and large workpieces, including those with rough or uneven surfaces.
No stray magnetic field, preventing tool from magnetization
Suitable for carbon alloy process
FEATURES
Very strong neodymium magnetic system
The magnetic field is dense and mass
Nominal holding force: 150 N/cm2
Magnetic field depth: 12mm
Pole plate wearing limit: 5mm
Pole pitch 15+4 mm can be produced
Hot keywords:High accurancy, High efficiency, High quality
PRODUCT SELECTION TABLE
MODEL
DIMENSIONS
LENGTH(MM)
WIDTH(MM)
HIGH(MM)
WEIGHT(KG)
POLEPITCH(MM)
PMM1018
180
100
56
9.5
3+12
PMM1525
250
150
56
20
3+12
PMM1530
300
150
56
24
3+12
PMM2040
400
200
56
35
3+12
PMM2060
600
200
56
52
3+12
PMM3050
500
300
56
56
3+12
PMM3060
600
300
56
67
3+12
