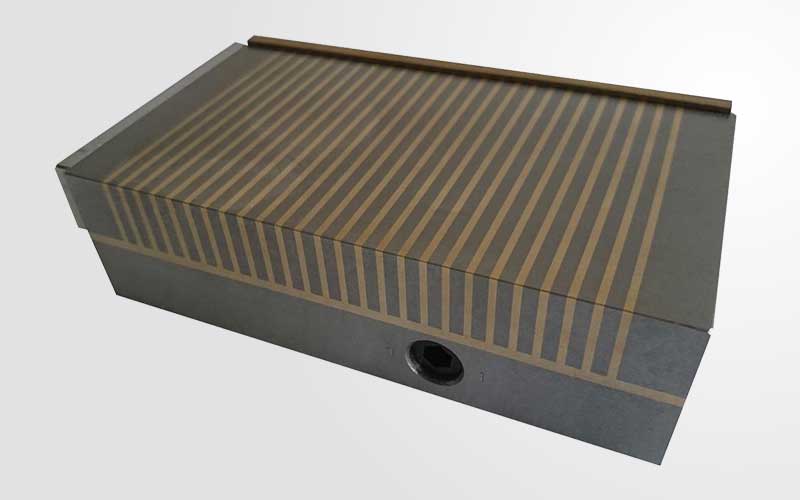

Middle pole rectangular permanent magnetic chuck
PMS
APPLICATION
For grinding and light cutting application
Best for large and thick size workpiece
FEATURES
Strong magnetic force and less remaining magnetism
With coolant and water proof structure
Can be switched ON or OFF by hand lever
Nominal holding force: 100 N/cm2
Magnetic field depth: 8mm
Pole plate wearing limit: 5mm
Pole pitch: steel 4mm, brass 2mm
Hot keywords:High accurancy, High efficiency, High quality
PRODUCT SELECTION TABLE
MODEL
DIMENSIONS
LENGTH(MM)
WIDTH(MM)
HIGH(MM)
WEIGHT(KG)
POLEPITCH(MM)
PMS1018
104
180
49
6.5
2+4
PMS1325
130
250
49
11.5
2+4
PMS1530
150
300
51
15.5
2+4
PMS2040
200
400
51
32
2+4
PMS2060
200
600
51
52
2+4
PMS3050
300
500
56
60
2+4
PMS3060
300
600
56
72
2+4
