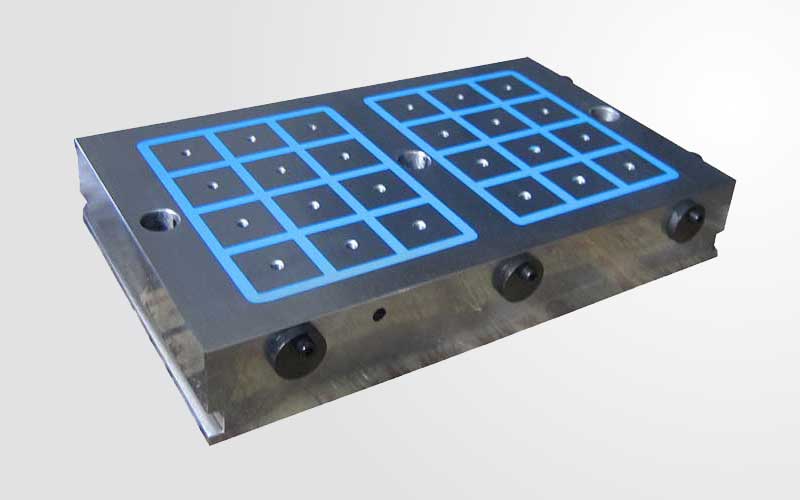

High density powerful electro permanent magnetic chuck with square 50×50 poles
EPM50S
APPLICATION
For milling and grinding processes
Best suited for workpieces at least 250x250mm and 10mm thick, also with limited thickness and normal operating air gaps
FEATURES
Pole size：50 ×50mm
450kgf for each pole
High poles density
Magnetic field depth：10mm
Hot keywords:High quality, High accurancy, Powerful
PRODUCT SELECTION TABLE
Model
Length
A(mm)
A(mm)
Width
B(mm)
B(mm)
Height
H(mm)
H(mm)
Weight
(kg)
(kg)
Number of
poles(PCS)
poles(PCS)
EPM50s-303
329
303
84
62
16
EPM50s-305
491
303
84
93
24
EPM50s-306
609
303
84
118
32
EPM50s-405
491
421
84
123
36
EPM50s-406
609
421
84
160
48
EPM50s-508
771
480
84
160
48
EPM50s-608
771
598
84
290
90
EPM50s-610
1007
598
84
400
126
