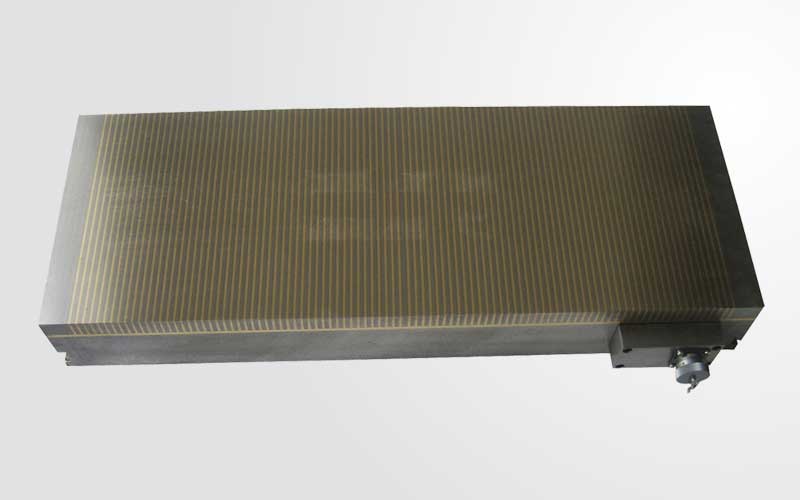

Fine pole electro permanent magnetic chuck for grinding

Electro permanent magnetic chuck

Language :  English
Fine pole electro permanent magnetic chuck for grinding
EPF

APPLICATION

Suitable for grinding work and thin work piece

Min thickness of workpiece 5~8mm



FEATURES

Pole pitch: 0.5+1.5 mm

100N/cm2 holding force

No electricity required to keep the elctro permanent magnetic chuck

Fine pole electro permanent magnetic chuck for grinding
Fine pole electro permanent magnetic chuck for grinding
Hot keywords:
PRODUCT SELECTION TABLE
MODEL
DIMENSION(MM)
A
B
C
D
E
F
G
H
I
P
WEIGHT(KG)
EPQ500
500
68
280
4
320
M16（6X）
16
100
15

160
EPQ600
600
68
350
4
390
M16（6X）
18
100
15

230
EPQ800
800
68
500
4
560
M16（6X）
18
180
18

430
EPQ900
900
68
500
4
560
M16（6X）
18
180
18

560
EPQ1000
1000
68
500
4
620
M16（6X）
18
200
18

720
EPF-EPS.pdf
